Miejsce pochodzenia: | Chiny |
---|---|
Nazwa handlowa: | Runpaq |
Orzecznictwo: | NONE |
Numer modelu: | K33 |
Minimalne zamówienie: | 1000 sztuk |
Szczegóły pakowania: | karton |
Czas dostawy: | 15-21 dni |
Zasady płatności: | T/T, L/C, D/A, D/P, Western Union |
Możliwość Supply: | 200000 zestawów/miesiąc |
Normalne napięcie: | Bateria litowa 2,5-5VDC | Podanie: | otwórz / zamknij zawór ogrzewania |
---|---|---|---|
Pusty prąd pracy: | <40 mA (23 C) (silnik #300) | Prąd przy pełnym obciążeniu: | około 650 mA |
Silnik: | Silnik DC2.5V #300 | Moment obrotowy: | 2 mil morskich (1600:1) |
Czas otwarcia/zamknięcia: | < 10 sekund (1600:1) | Współczynnik redukcji: | 2000 : 1 (dla zaworu kulowego DN15 - 25); |
Ochrona: | IP67 | Model: | K33 |

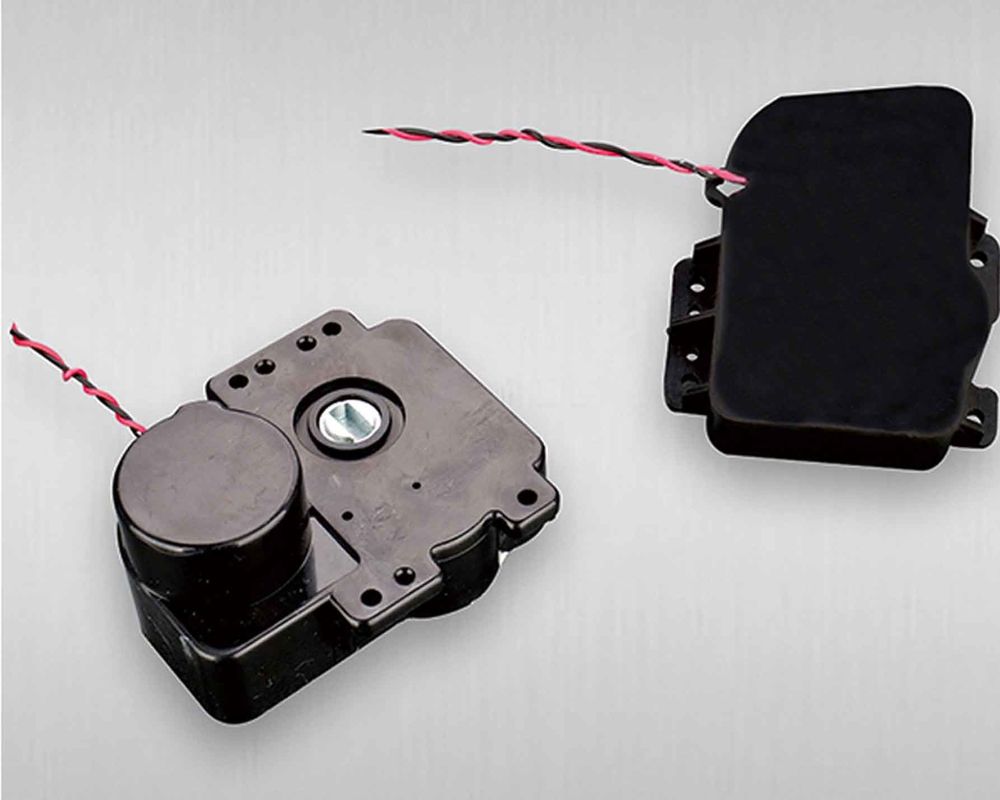

2NM dC2.5V actuator motor, 3 way mini motorized ball valve
Product description
The brass ball valve need be driven to be open or close, or an open angle by a DC motor actuator. Our DC synchronized gear actuator motors are available with DC2.5V-5V lithium powered, torque: 1NM - 9 NM at different velocity reduction ratio. The robust structure, ensures extremely long service life cycles more than 20,000 times, also different protection level. You'll get a wide selection of spare parts for your products in the application on HVAC, automation, IOT smart city, zone control valve, heating valve, AMR water meter, etc. A mini motorized ball valve, can be 2 way or 3 way full port, which are used for the flow control, zone valve, heating valve control, smart water meter open / close.

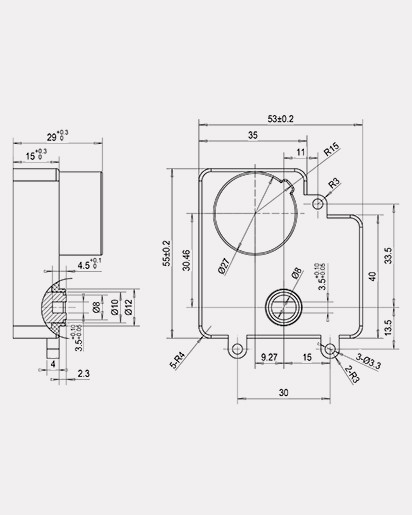

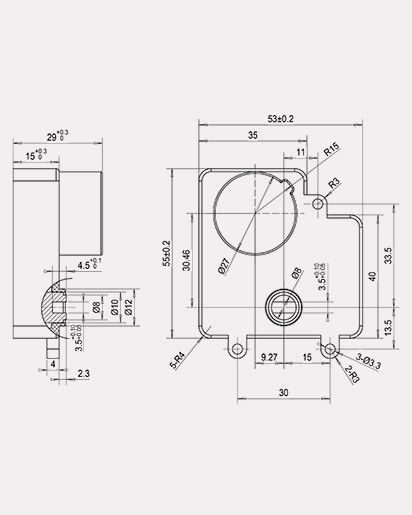

Technical data-Model K33
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idle: <40 mA @ 3.6V, 23ºC
3. Current with max loading: <650 mA (motor #300)
4. Torque: >2 NM (2000:1)
5. Open/close time: <10 S (2000:1)
6. Velocity reduction ratio: for DN15, DN20, DN25 ball valve (2000:1)
7. Protection: IP67
Wiring definition
No | Color of wire | Definition |
1 | blue | on position signal, valve open |
2 | white | on position signal, public |
3 | yellow | on position signal, valve close |
4 | black | positive (+) |
5 | red | negative (-) |
